DW-200 Double/Ripple Wall Cup Machine
- Model DW-200 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second-wall sleeve over the inner-cup/bowl (cup/bowl finished by paper cup/bowl machine), wear a sleeve around the papercup/bowl.
- It is the matching equipment of Paper Cup Machine & Paper bowl machine, which has the function as photocell detection, failure alarm, counting
- It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve-cone-body sealing (by ultrasonic wave), water-glue spraying (spray glue inside the cone-sleeve), cup/bowl feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and
- Machine Introduction
- Technical Parameters

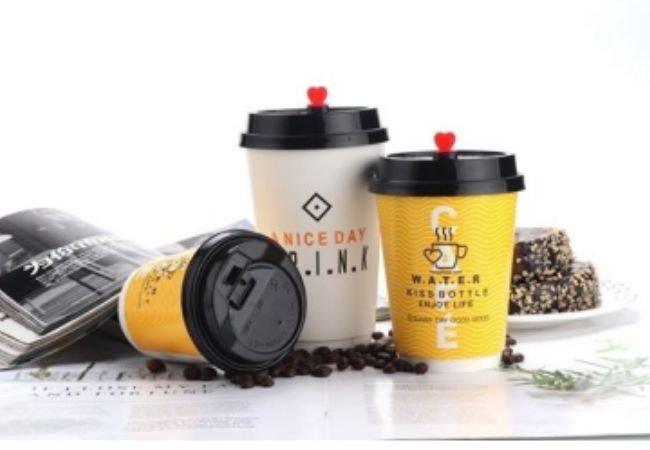

- Sample
- Company
- Factory
Description:
DW-200 high speed double/ripple wall cup machine comes with open intermittent indexing cam mechanism, gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It can make the double wall and ripple wall on the same machine, suitable for making coffee cup, tea cup with two layer.
After Sales Service:
- We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
- Spare Parts: Each machine has its standard spare parts (see list).
- Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
- The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
- The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.
| Model | DW-200 |
| Rated Speed | 80~100 PCS/minute |
| Paper Cup Size | 4 ~ 32 oz(T:60~125mm, H:55~135) |
| Sealing method | Ultrasonic sealing and gluing |
| Suitable paper weight | 170~300gsm |
| Power Source | 50Hz, (380V 3-phase, 50Hz), (Better use 380V 3-phase) * if User power different? Please INFO US IN ADVANCE |
| Total Power | 5KW |
| Working Power | 3.5kW |
| Total Weight | GW/NW: 3400/3300KG |
| Pack Size (L*W*H) | 2500 x 1300 x 1600 mm |
| Working Air Source | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor |
| Cup Side Welding | Ultrasonic |
