Automatic Paper Carton Erecting Forming Machine

ZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation

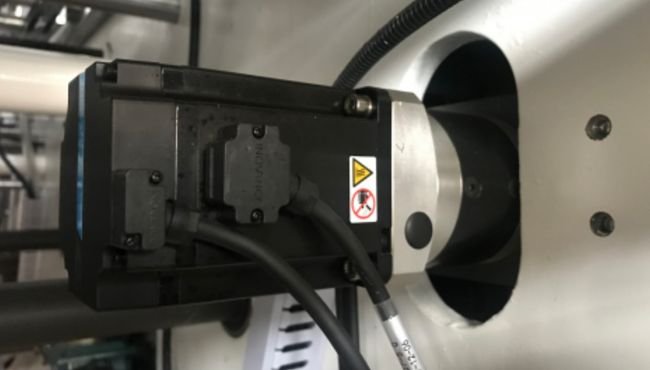

Feeding system:Servo controlled feeding system,Sensor detection system

1.No need the adjust the distance or change different size cam to control feeding .It save the time and more precision when change the mold.

2.Sensor detection to control start and stop feeding and will replace the up down part.Feeding will be much more steady.

Standard electric box and marked clearly

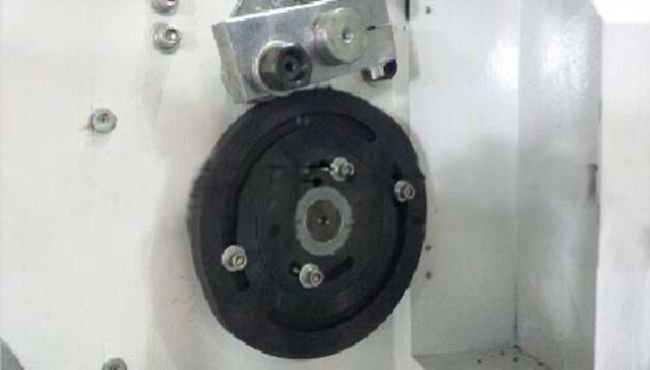

Chain drive system,and reinforce with metal frame and board.
Motor controlled gluing system.Inject glue and change the gluing sponge easily and quickly
The collecting frame can be opened in three parts.It is easier to install the forming spare part and commissioning
It adapts the paper tape inserter for counting

New Main Features:

It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.



After Sales Service

  • We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
  • Spare Parts: Each machine has its standard spare parts (see list).
  • Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
  • The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free. (buyer should pay for his cost of ticket, hotel, food, etc).
  • The seller agrees to dispatch technician for installation & training, the cost covered by the buyer. Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.
Model ZF-800
Production capacity 50-180 pcs/min
Suitable Material 200-600gsm card paper,PE coated paper, kraft paper, corrugated paper
Paper open length L100-450mm,degree:5°-40°
Paper open width B100-600mm Height H15-200mm
Total Power 5KW
Weight 1.7T
Dimension 3600 x1400 x 1700 mm
Power source 380V 50HZ

SanLin Machine

The company pays attention to technological transformation, strives to improve equipment performance, manufactures excellent products that meet customer needs, and provides timely and reliable after-sales service. Therefore, it has been unanimously praised by users in the same industry and at home and abroad. The company adheres to the corporate belief of “people-oriented, pursuit of excellence” and the business tenet of “reputation first, customer first”, focusing on scientific and technological innovation, and the principle of winning by quality, and constantly improving the internal management and after-sales service of the company to ensure that it provides and meets customers As for the requirements and product service, SanLin Enterprise warmly welcomes new and old customers to visit and patronize.
