HSR- 1050-4 Flexo Printing Machine

Max Rewinding Diameter

Unwinder Unit

  • Max unwinding diameter 55inch(1400mm), with 3 inch roll axis core, including Automatic web guiding device,correct the position of paper automatically.With paper binding table and hydraulic lifting paper shaft device,and with Autotension controller system
  • 3inch Air swelling shaft core

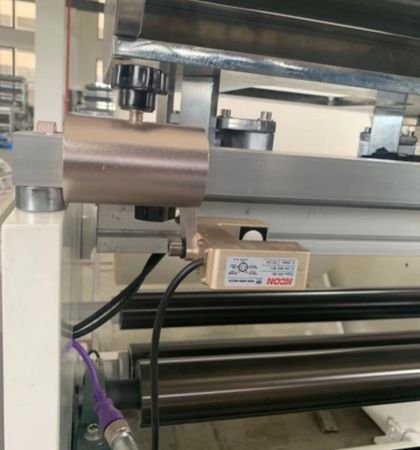

  • Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised(Ikon FV-2000)
  • one Magnetic powder brake
  • with fast inflatting gun

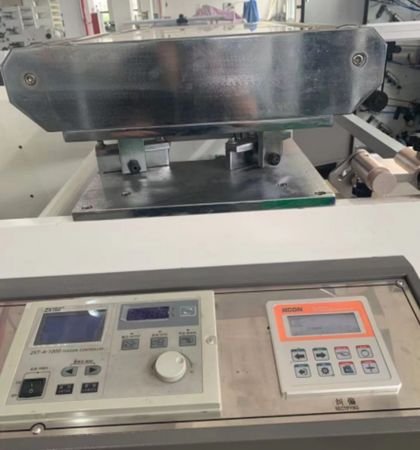

  • Feeding tension unit:Taper control technology to ensure the regsiter precision.

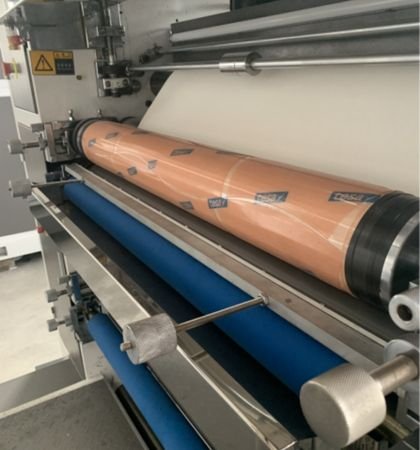

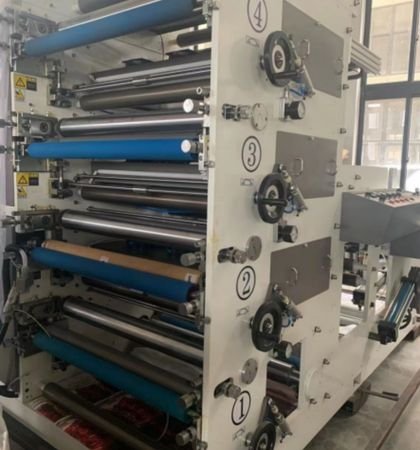

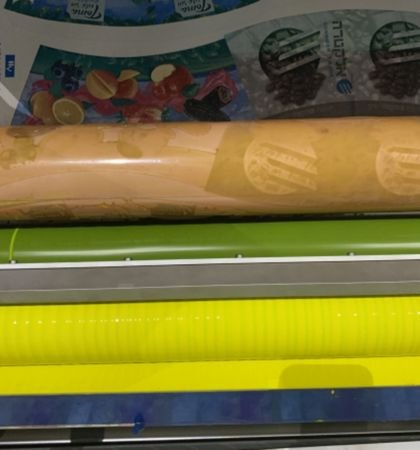

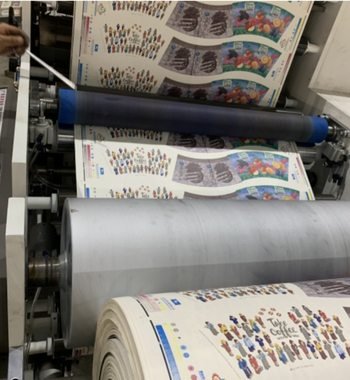

Printing Unit

  • Fourcolors printing unit,ceramic anilox roller, printing roller and pressureroller with high precision.
  • Theprinting unit adopt 45 degree of DP13 helical gear structure.It can eliminated the vibration of the machine , to make it more stable and durable.
  • Printing roller :8pcs(teeth number as require)
  • Ceramic Anilox roller: 4pcs(lpi as require)
  • Anilox roller, printing roller pressure pneumatic clutch

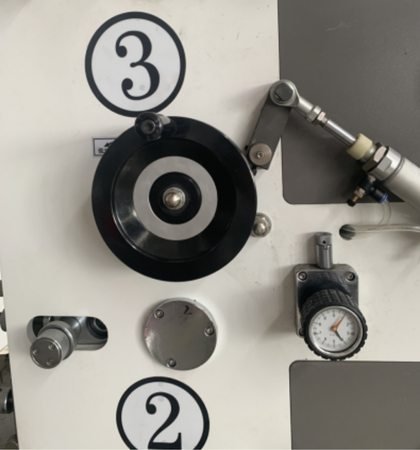

  • Manual transverse focusing alignment  4set
  • Manual vertical focusing alignment  4set
  • Single pole reverse scraping system  4 set
  • Stainless steel cartridge  4 set
  • Fast changing plate cylinder without any tools
  • Anilox roller rotation function: when machine stoped theanilox roller still running automatically, to prevent ink dry on anilox roller, avoid the anilox roller plug.
  • The printing gear:cp1/8

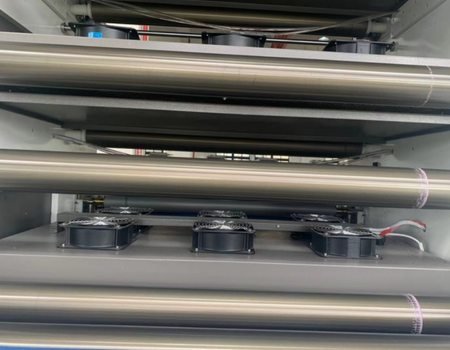

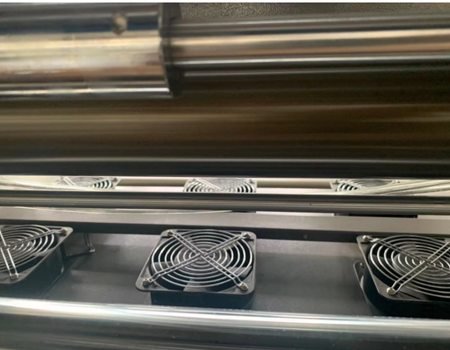

Drying Unit

  • Each printing group with IR dryerwith 6pcs lamps ,controlled by independent switch,tempreture is adjustable.
  • Hot wind and natural cold wind blowing combination.(including the suction blower)The incoming air volume is adjustable in each unit.
  • Each printing group with hot air fans,ensure the quality of drying.(6blowing and 1 suction)

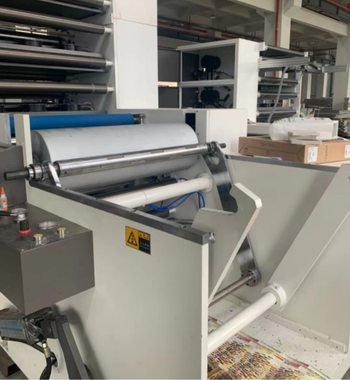

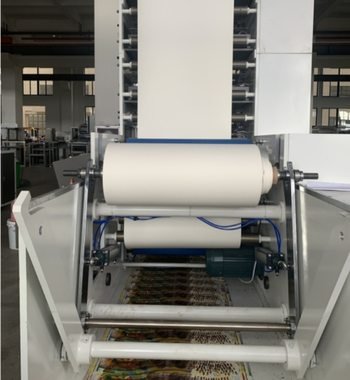

Rewinder Unit

  • A set of winding for rewinding after printing, withmotor driven, ensure the stablity of rewinding tension and the precision of high speed running.
  • back to back design rewinding makes the paper roll more smoothly and more tight .
  • with one 3inch rewind shaft core
Model HSR-1050-4
Max Unwinding Diameter 1400mm
Max Rewinding Diameter 1400mm
Printing Circumference 254–508mm
Max Web Width 1050mm
Max Printing Width 1020mm
Power supply 380V 3PH 50HZ
Printing speed 5-100m/min
Plate thickness 1.7mm
Tape thickness 0.38mm
Thickness of paper 40-400g
Size 5.9*1.85*2.25m
Weight About 6000kgs



SanLin Machine

The company pays attention to technological transformation, strives to improve equipment performance, manufactures excellent products that meet customer needs, and provides timely and reliable after-sales service. Therefore, it has been unanimously praised by users in the same industry and at home and abroad. The company adheres to the corporate belief of “people-oriented, pursuit of excellence” and the business tenet of “reputation first, customer first”, focusing on scientific and technological innovation, and the principle of winning by quality, and constantly improving the internal management and after-sales service of the company to ensure that it provides and meets customers As for the requirements and product service, SanLin Enterprise warmly welcomes new and old customers to visit and patronize.
