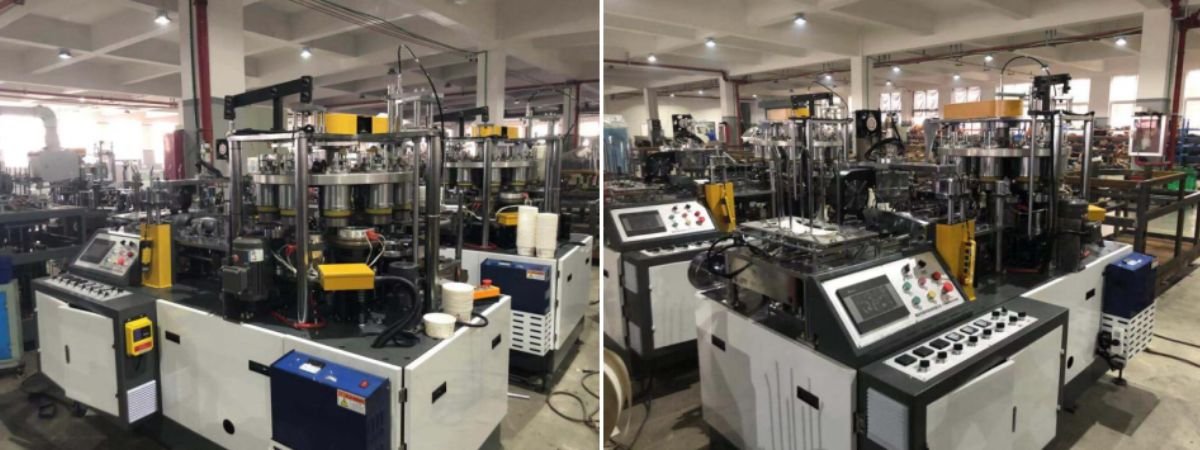

ZBJ-DP35 OPEN CAM Ultrasonic Paper Bowl Machine
- Adopt Open Cam drive the main table, easy maintenance, more stable and reliable.
- 10 molds instead of 8 molds turn table, more efficient and stable.
- Gears & Axis, shaft, cam control movement, more efficient & accurate.
- HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
- All procedure sensor detects (control all step), Less wastage & fault, Reliable.
- Self lubrication (Automatic Oil Lubrication for machine moving part), long life time.
- Import electric Elements, Superior Bearing & Quality material, more durable and reliable.
- Working power only 5 KWH, save electric power cost.
- Speed improved to 70~80 pcs/minute (single PE can run faster than double PE), save worker cost.
- Machine Introduction
- Technical Parameters
- Sample
- Company
- Exhibition
Description:
ZBJ-OC35 paper bowl machine, paper container machine, is improved on X35 model, adopt open cam dividing, and use 10 mold instead of 8 mold, fast speed, make big size cup container bowl (for soup bowl, cup, popcorn bowl, container)
After Sales Service
- We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
- Spare Parts: Each machine has its standard spare parts (see list).
- Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
- The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free. (buyer should pay for his cost of ticket, hotel, food, etc).
- The seller agrees to dispatch technician for installation & training, the cost covered by the buyer. Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.
| Model | ZBJ-DP35 |
| Rated Speed | 50~70 PCS/minute, (3000~4200 PCS/hour, on cup size, paper quality and thickness) |
| Paper Cup Size | (mold exchangeable) 10~50 oz bowl, container, cup |
| Raw Material | One or Two side PE film coated paper |
| Suitable paper weight | 170~450 gsm |
| Power Source | 380V 3-phase, 50HZ |
| Total Power | 10KW |
| Working Power | 5kW |
| Total Weight | GW/NW: 3400/3200 KG |
| Pack Size (L*W*H) | 2300 x 1600 x 2000 mm |
| Working Air Source | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor |
| Pack Size (L*W*H) | 2300 x 1600 x 2000 mm |
| Working Air Source | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor |
| Pack Size (L*W*H) | 2300 x 1600 x 2000 mm |
| Working Air Source | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor |
| Cup Side Welding | Ultrasonic System |
| Cup Bottom Heating | Hot air (need air compressor to supply air) |
| Cup Bottom Knurling | Cool Device (recycle water) knurling, for double PE coated paper |
