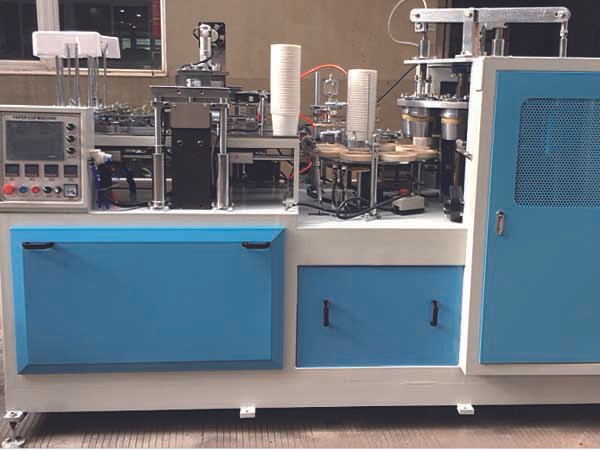

ZBJ-X35 Ultrasonic Paper Bowl Machine

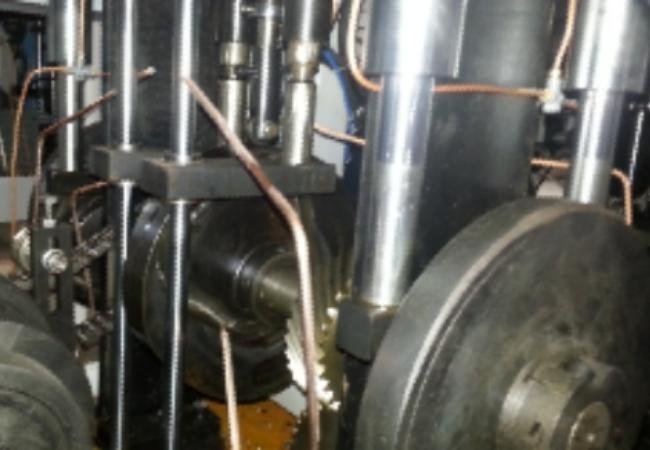

  • Gears & Axis control movement, two index gear box, more efficient & accurate.
  • HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
  •  All procedure sensor detect (11-sensor control all step), Less wastage & fault, Reliable.
  • Self lubrication (Automatic Oil Lubrication for machine moving part), long life time.
  • Import electric Elements, Superior Bearing & Quality material, more durable and reliable.
  • Working power only 3.5KWH, save electric power cost.
  • One worker can run 2sets machine (machine assemble cup stock), save labor cost.

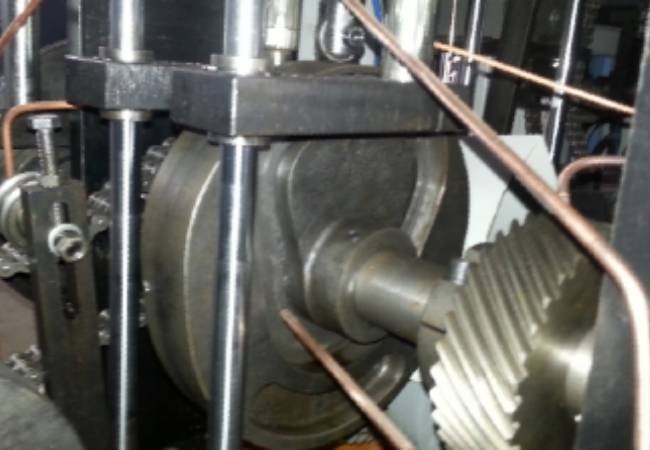

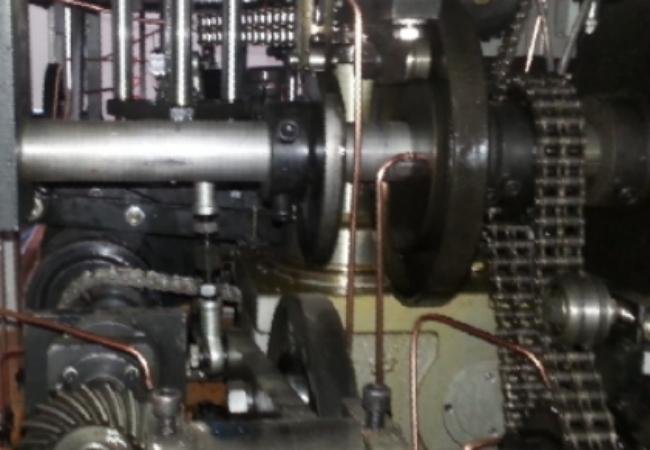

  •  Main gear box is 140#, Bottom punching gear is 80# (two gear box).
  • Speed improved from 30 pcs/m to 50~60 pcs/minute.
  • Adopt 11  sensor detecting all the step, with CPU program control, fault solution.

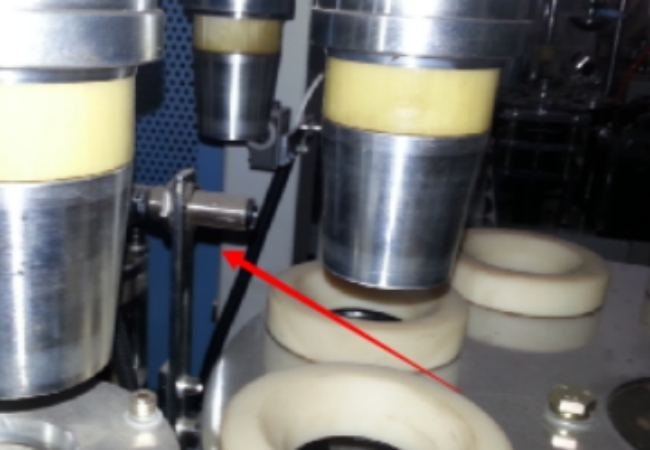

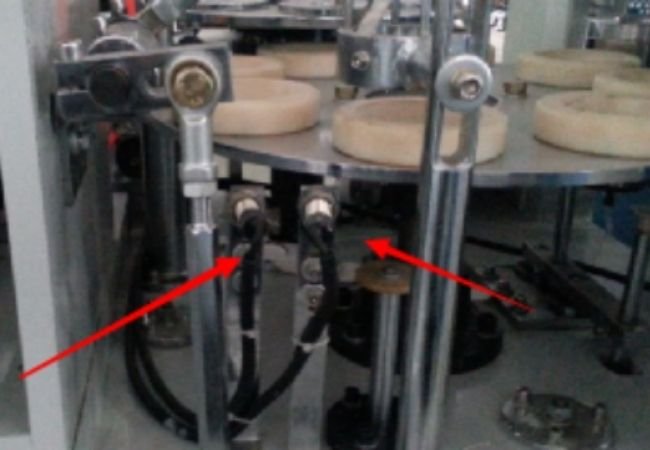

  • This device adopt non-contact multi-point light control switch. It can detect all the working situation, control all the moving steps, keep the machine more stable and reliable. With the function of fault alarm, stop, and solution, easy operating.

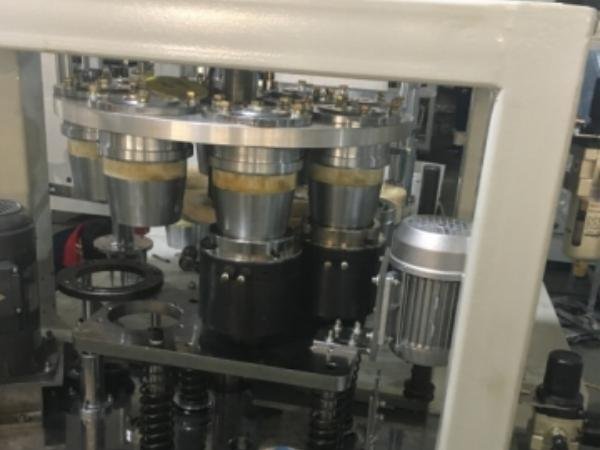

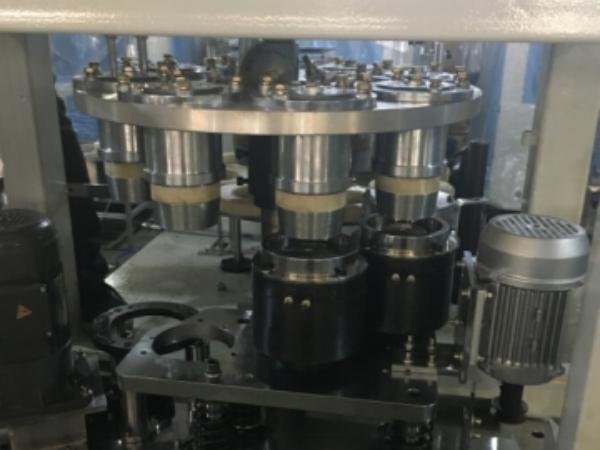

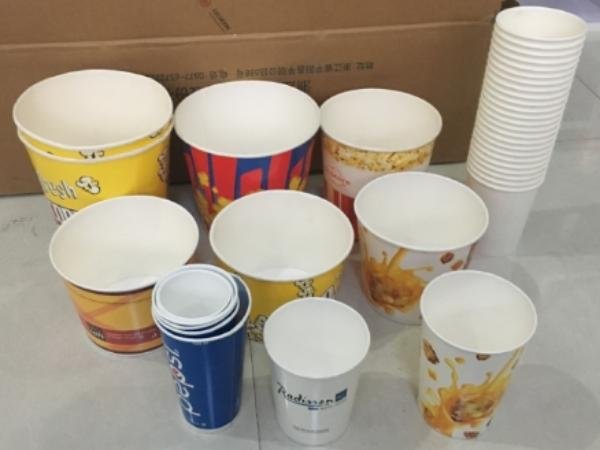

ZBJ-X35 ultrasonic paper bowl machine is designed for big size bowl/cup.

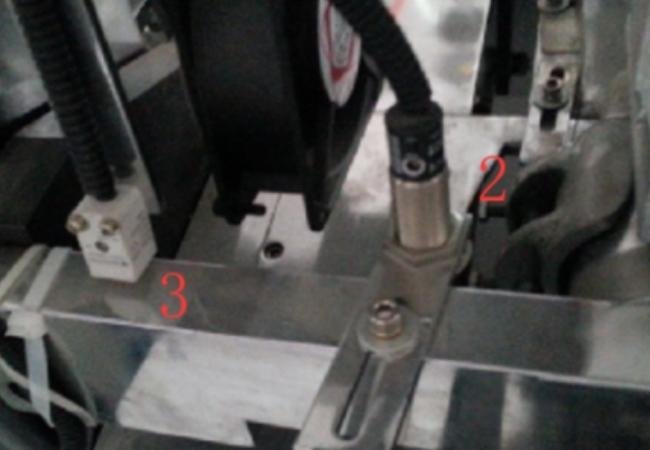

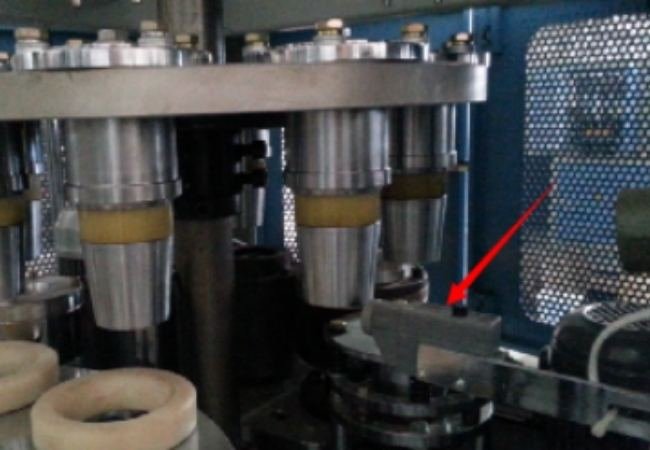

1. Cup-fan short alarm, Remind you to feed cup-fan blanks

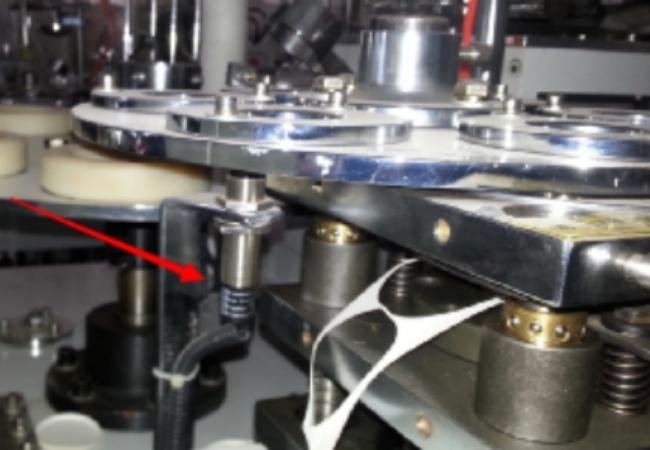

2. Sensor detect cup body sealing, only cup fan sealing, Punch cup bottom disc, no waste.

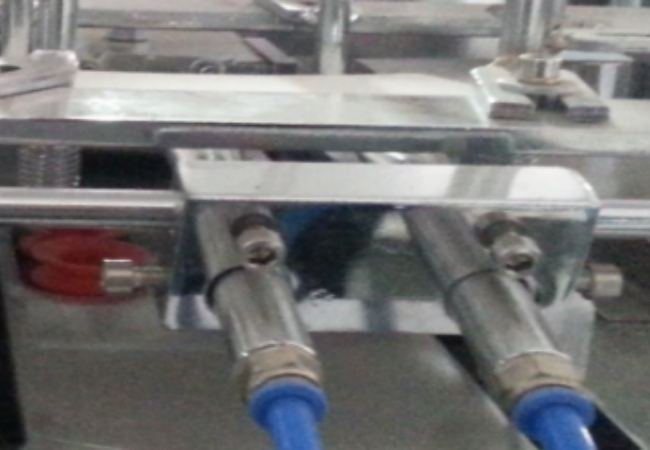

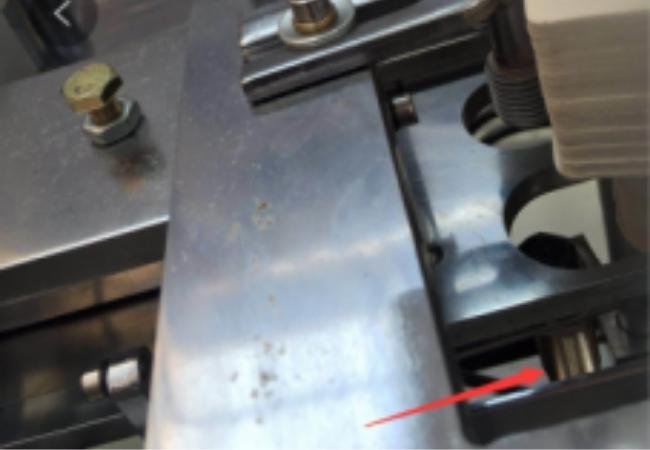

Four PCS QUALITY suck rubber & Blower separate blank, More accurate .

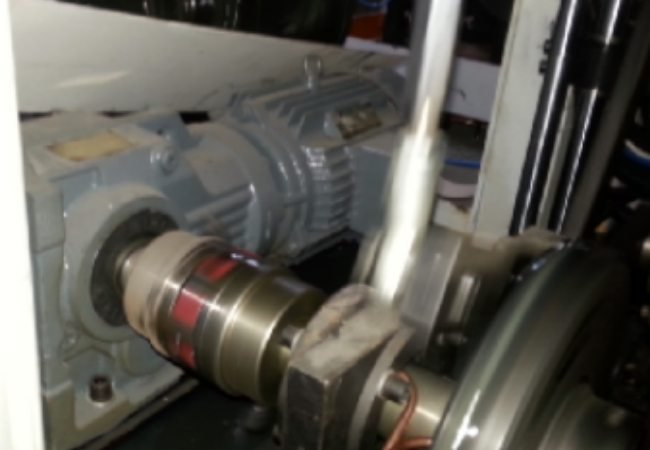

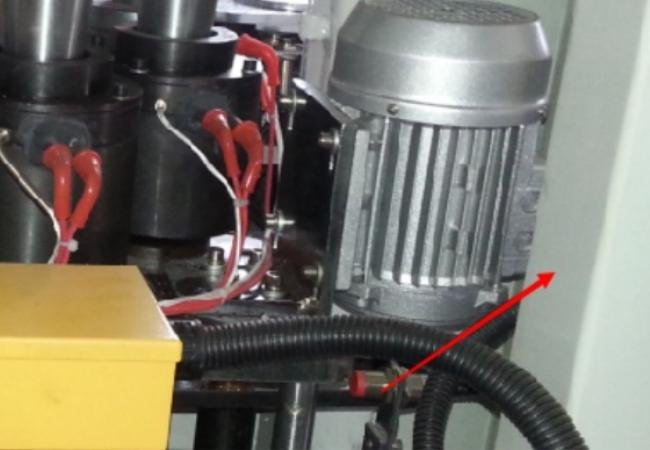

Stepping-motor control the bottom-reel paper feeding, which keep the bottom-disk gap within 0.1mm (more stable and save paper). Program keep the cup-bottom-feed corresponding to its cup-cone-body, the machine will be stopped when out of bottom-paper, avoiding the waste in paper.

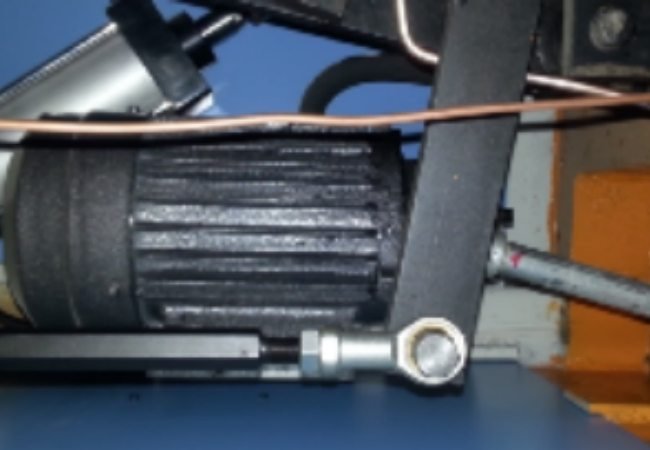

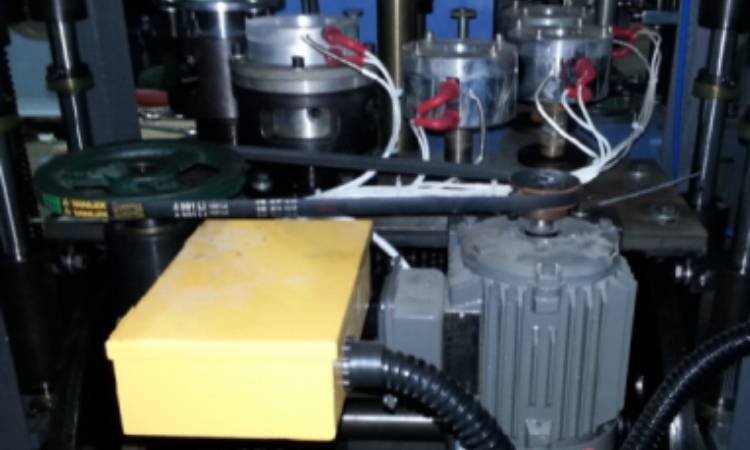

Servo Motor feed cup bottom disc, one cup blank one bottom disc, no waste.


Self-lubrication system

Adopt self-lubrication system (automatic oil circle system), Keep moving parts durable.

automatic lubricate the move parts(bearing, axis, cam, gear, chain, etc), keep the machine long life time (more durable) and reduce the manual maintenance, reduce the friction between the parts. So the machine can be maintained without manually fueling.

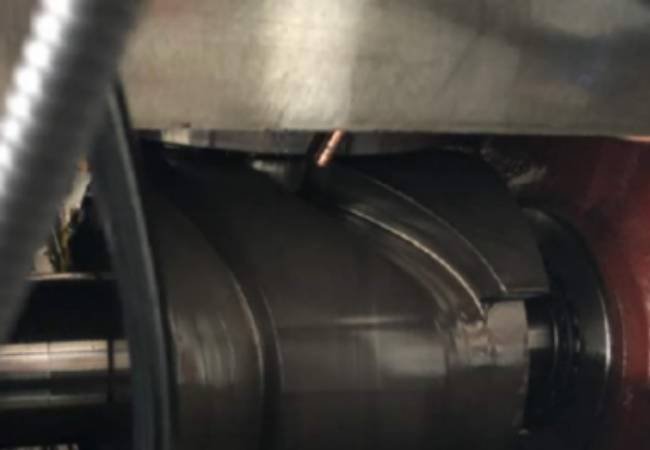

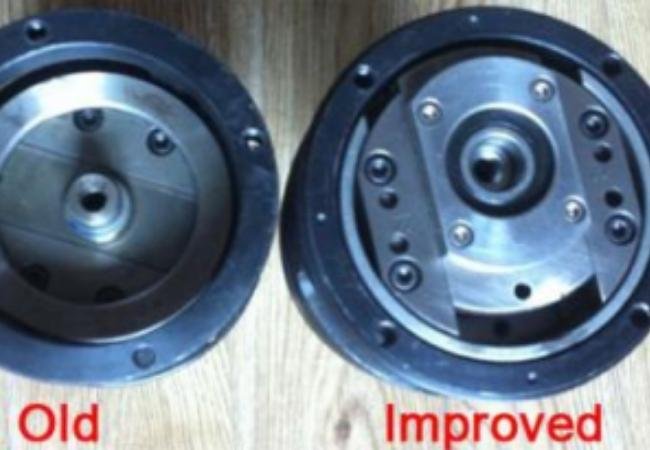

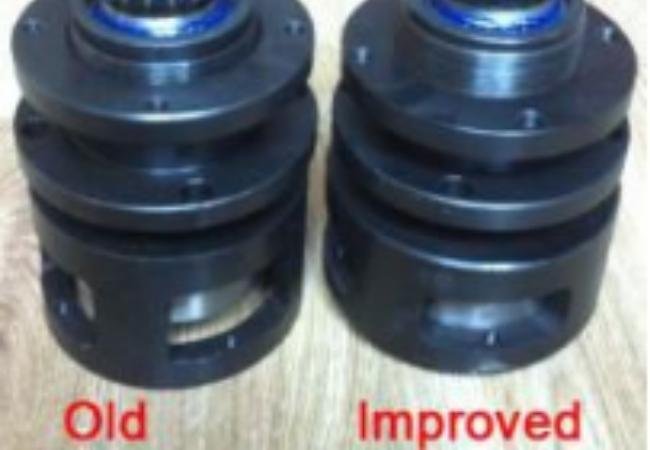

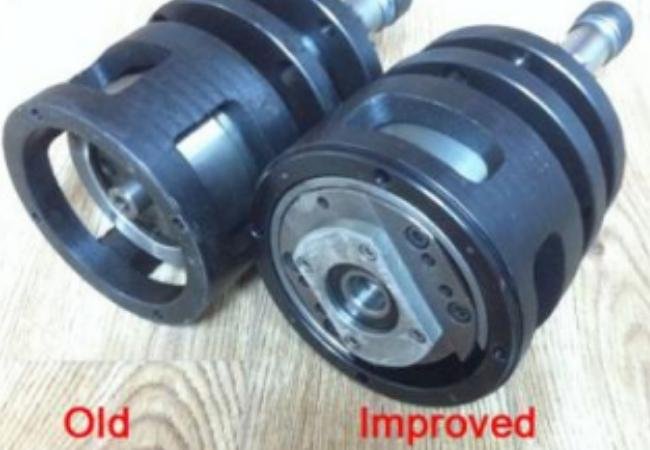

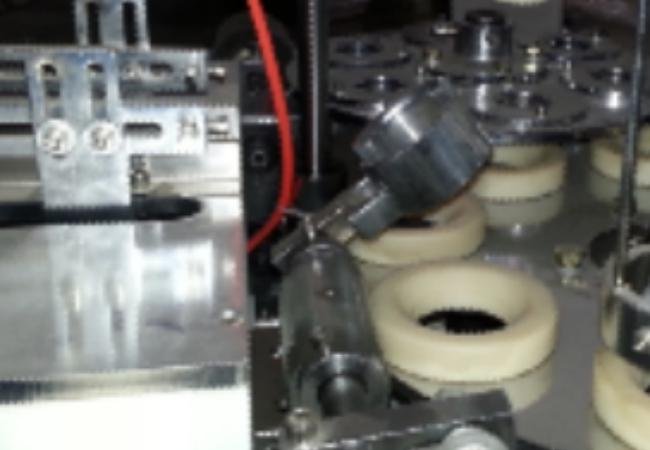

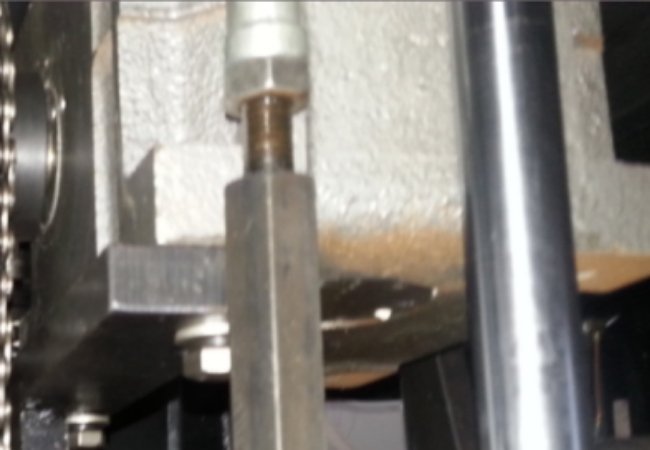

Adopt high quality material for knurling device, and improved reliable knurling system, keep the bottom knurling more better, and no leakage, long life time, easy run.

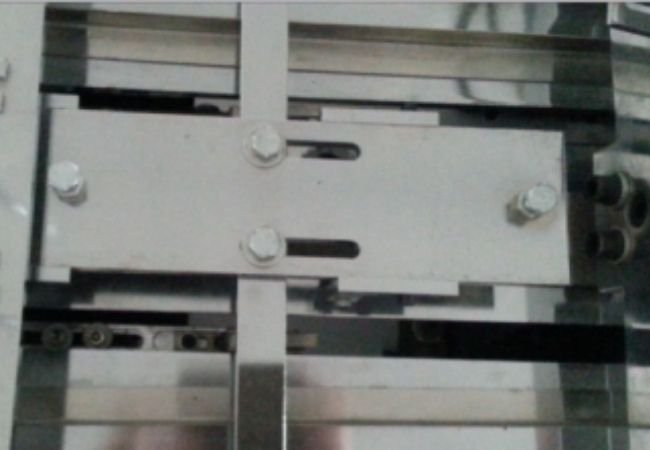

Separately cup/down board, to light the movement pressure, Less moment, Fast & Stable.

After Sales Service

  • We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems. All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
  • Spare Parts: Each machine has its standard spare parts (see list).
  • Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
  • The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free. (buyer should pay for his cost of ticket, hotel, food, etc).
  • The seller agrees to dispatch technician for installation & training, the cost covered by the buyer. Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.
Model ZBJ-X35
Rated Speed 50~60 PCS/minute, (3000~3600 PCS/hour, on cup size, paper quality and thickness)
Paper Cup Size 20~50 oz (mold exchangeable)
Raw Material One or Two side PE film coated paper,
Suitable paper weight 170~450 gsm
Power Source 380V 3-phase, 50HZ
Total Power 8KW
Working Power 3.5kWH
Total Weight GW/NW: 2700/2500 KG
Pack Size (L*W*H) 2900 x 1450 x 2000 mm
Working Air Source Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor

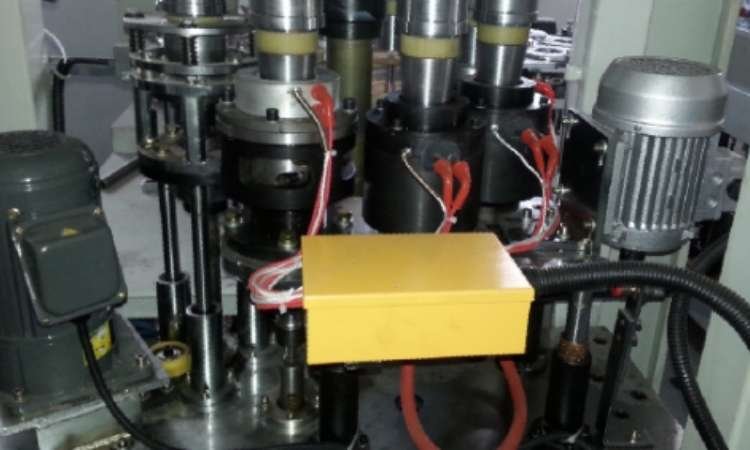

Cup Side Welding Ultrasonic System
Cup Bottom Heating Hot air (need air compressor to supply air)
Cup Bottom Knurling Heater Knurling (if use single PE coated paper) Cool Device (recycle water) knurling, for double PE coated paper
